2009-17 RAM 1500 2WD 7" Lift Kit W/ FOX SHOCKS (4.7 V8)
PRODUCT REF : K882470F
The Maxtrac Suspension 7-inch lift for the Ram 1500 is a cost-effective way to lift your 2WD wheel drive truck without breaking the budget. We do this by taking a factory height spindle and lowering the wheel hub position, which in turn raises the vehicle up while maintaining a factory-like ride and turning radius. We then replace the factory coil spring with a lifted coil spring and Fox 2.0 monotube shock to complete the front lift. By doing this, you eliminate the need to install expensive crossmembers that are labor intensive and require factory frame cuts. The spindles come with extended, DOT compliant, stainless steel braided brake lines. The rear lift comes with Fox 2.0 monotube shocks, rear coils, track bar/swaybar brackets. The end result, you achieve a lifted truck with a leveled stance for a fraction of the cost of a standard 4WD kit.
SPECIFICATIONS
2wd ONLY

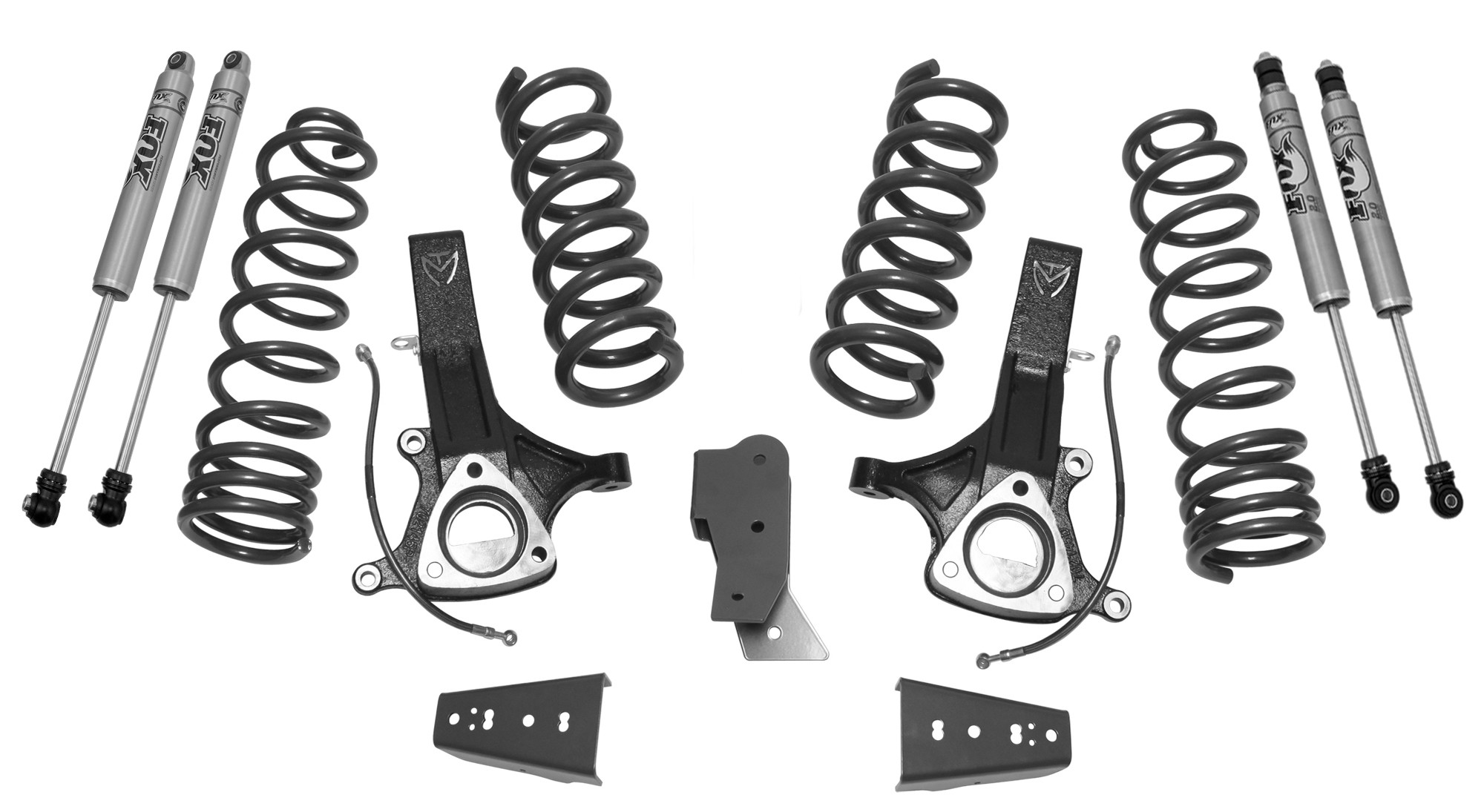

Front component boxes:
- P/N: 702145 4.5” Lift spindles with extended DOT approved brake lines
- P/N: 872170F (4.7 V8 only) 2.5” front coils & front Fox 2.0 shocks (762115F)
P/N: 902445F Rear component box:
- 3” Rear coils
- 1.5” Coil spacers
- Track / sway bar brackets
- Fox 2.0 shocks (772430F-4)
WHEEL FITMENT:
-17” Wheel w/ 5.5” Backspacing or less
-Will Clear up to a 37” tires with the correct wheel & tire combination.
-This kit will allow factory wheels & tires to bolt back on.
NOTE:
These vehicles will vary in rake from the factory. Our a rear 1.5” coil spacer (part# 1628) is used in conjunction with the rear 3” kit for a total of 4.5” of lift in the rear of these trucks.
P/N: 612400 required for vehicles with 2 piece driveshaft.
