Description

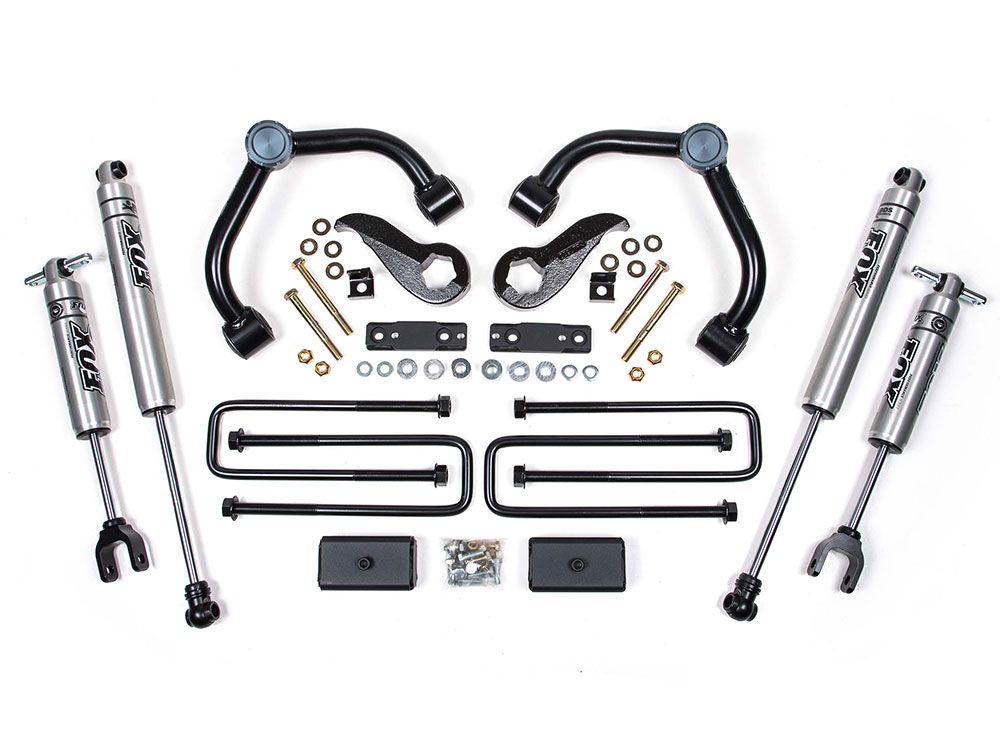

This premium quality BDS 760FS 3 inch lift kit for the Chevy Silverado 2500HD / 3500HD allows for use of up to 35 inch tires. Built around a set of heavy duty tubular upper control arms designed for improved strength and suspension travel. Built from thick wall 1.5" DOM tubing, and use an indexed ball joint cup to reposition the upper ball joints to allow more droop travel. These arms come fully assembled right out of the box with high quality greaseable ball joints and rubber bushings for long life, quiet operation and superior corrosion resistance over uniballs and heims. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied up front to lift vehicle. A small differential relocation kit is supplied to correct CV axle operating angles without effecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle.
In the rear a 2 inch block and u-bolt kit is used to create a level to slightly tail high stance when unloaded.
Rounding out these kits are a set of specially tuned FOX 2.0 performance series IFP shocks ready to soak up the terrrain.
Top Features
- Lifts vehicle 3 inch front / 2 inch rear
- Heavy duty tubular upper control arms
- Indexed ball joint cup to allow more droop travel
- Cast steel torsion bar keys
- Greaseable ball joints and rubber bushings for long life
- Rear block and ubolts
- Allows use of up 35 inch tires
- Made in the USA
- Average Install Time: 3 to 4 hours
- Fox 2.0 Performance IFP Shocks
- No Fine Print Lifetime Warranty
- Factory Protection Plus
Tire & Wheel Combinations
- Tires: 35 x 12.50, Wheels: 20x9, Backspacing: 5.5 to 5.75 inch
- Tires: 295/60 w/20x9 and Backspacing 5.5 to 5.75 inch
- Tires: 285/65 w/20x9 and Backspacing 5-6.18 inch
Premium Quality, Lifetime Warranty and Protection
BDS Suspension manufactures only premium quality suspension products. All are backed by a "No Fine Print" limited lifetime warranty. Guaranteeing all products to be free from defects in material and workmanship to the original retail purchaser. If you break it, they replace it...period.
Drivetrain Protection - BDS Suspension offers FREE 560Plus Factory Protection Plus. This supplemental drivetrain protection (5 years - 60,000 / 100,000 miles) on select vehicles gives you piece of mind with your purchase
