Description

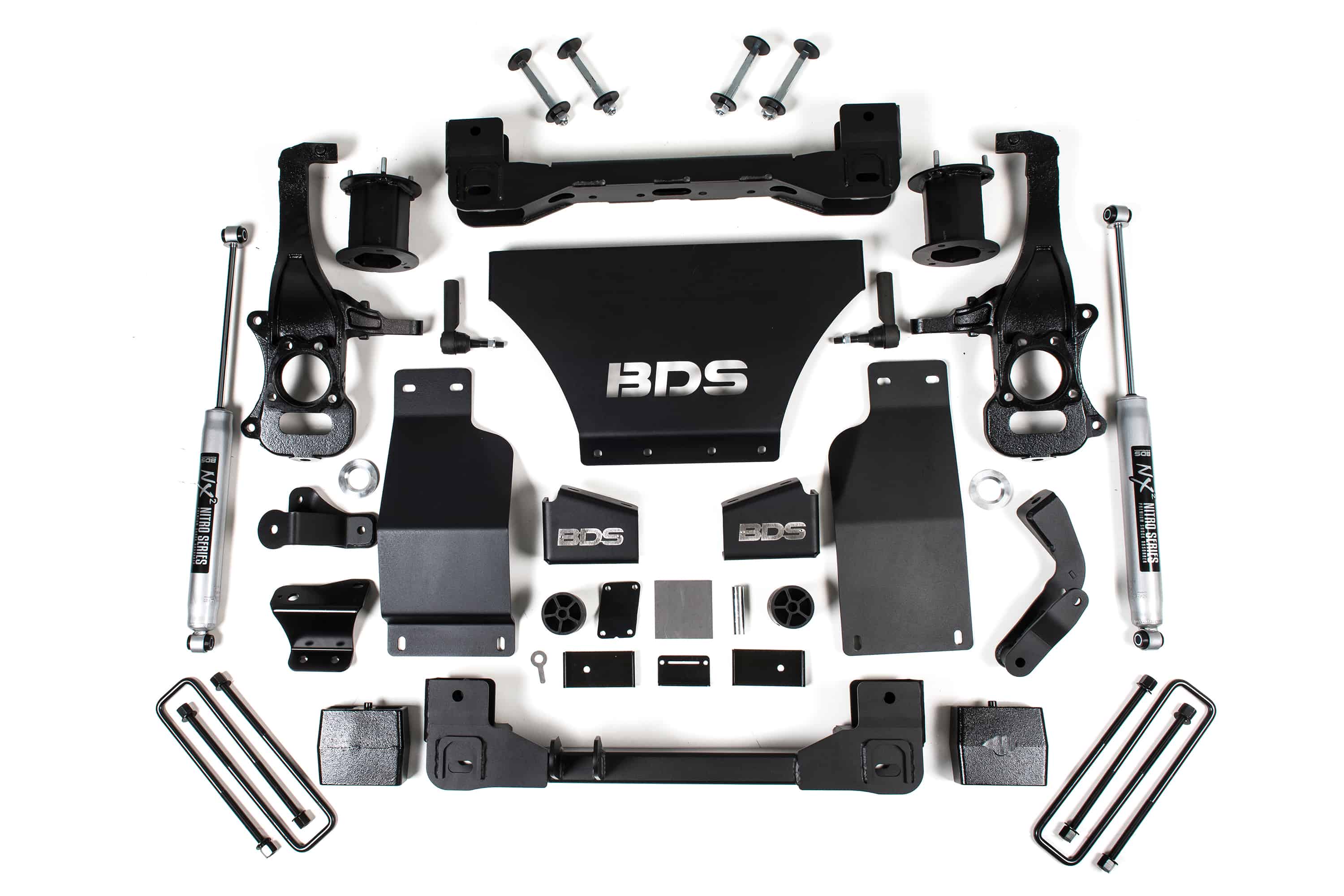

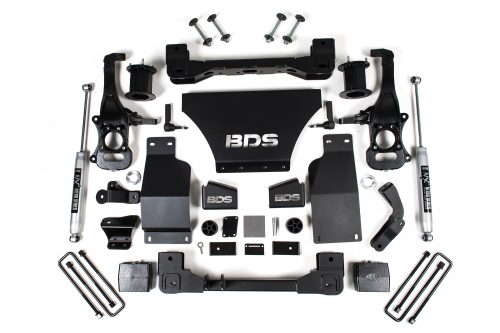

- Take your new Chevy/Silverado 1500 to new heights with BDS. Engineered for not only offroad capability with clearance for up to 37s, this kit maintains on-road handling and has been confirmed compliant with FMVSS 126 (ESC System) standards. At the heart of this BDS 6" IFS system are a pair of 1/4" thick laser cut high clearance crossmembers to maximize clearance and provide a solid mounting point for the OE lower control arms. These paired with the 3-piece heavy duty front skid plate system create a rigid subframe while adding protection for vital steering and driveline components. In place of the factory steering knuckles a pair of specially designed ductile iron replacement steering knuckles are supplied to maintain proper steering geometry for ESC system compatibility while also allowing a wider range of wheel fitment options to include factory 20" wheels. These connect to the factory steering with a pair of heavy duty replacement tie rod ends included in the kit. The front differential is repositioned with BDS's multipoint relocation bracket system tying into the frame and control arm pockets to further secure the front differential to keep CV axle angles at a minimum. Additional ride height on this particular kit comes from a set of top mounted steel fabricated strut spacers to mount onto the factory strut assemblies. A pair of BDS-branded sway bar drop brackets used to correct the operating angle of the factory sway bar as well as created a strong brace between the rear crossmember and the frame. Also supplied are new lower control arm cam bolts to allow alignment and a weld-in frame reinforcement plate for extra strength. In the rear lift blocks and longer u-bolts lift and level the stance and your choice of NX2 gas or FOX 2.0 performance series gas shocks are supplied to round out this kit allowing room for 35-37" tires to be installed.
For additional tire & wheel combinations refer to the instruction sheet
-
- Tire & Wheel Combinations
- 37"x12.50" w/20x9 (Chevy) and 5.5"-6.25" back spacing
- 35"x12.50" w/20x9 (Chevy) and 4.5"-5" back spacing
- 35"x12.50" w/20x9 (GMC) and 5.5"-6.25" back spacing
*Trimming may be required*
- Est. Installation: 8 hours
- Difficulty Level (easy 1 - 5 complicated): 4
-
- Price is INSTALLED
