Description
We have bundled everything you need in a lift kit for your Suburban 1500/Yukon XL 1500 with high quality Cognito components. There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA.
The Cognito Front Lift kit is designed and engineered to offer superior ride quality and corrected CV joint angles. The Cognito Ball Joint SM Series Upper Control Arms add style, function, and performance to your vehicle by correcting the Ball Joint angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality.
The control arm kit features boxed sheet metal arms that are CNC robot welded and powder coated semi-gloss black. Ball joints are included as well as new crush sleeves and polyurethane bushings. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. The Cognito HD front sway bar is designed to reduce body roll, so you have better vehicle control and greatly improves traction for safer driving.
These HD Sway Bars are developed for this specific application. Measuring 1.5-inch in diameter and made from heat treated and hot formed 4140 chromoly steel for extra strength and durability. Larger sway bar clamps and polyurethane bushings are included.
Bilstein 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance. 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions, and are tuned for each specific application to assure optimal performance is achieved, and offer a significant improvement in ride quality, handling, and comfort.

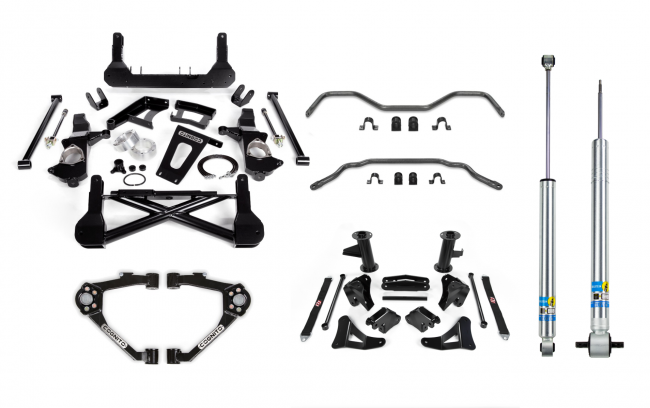

Each Kit Features:
- Yields 10 inches of front lift and 8 inches of rear lift
- 10-inch Front Lift Components
- SM Series Ball Joint Upper Control Arms
- HD front sway and rear sway bar
- Bilstein 5100 series front and rear shocks
- Maintains Adequate Droop Travel for Superior Ride Quality
- Allows for up to a 37 x 13.5-inch Tire on a 10-inch Wide Wheel with 4.75-inch Backspacing
- 17-hour DIY install time
- Made in the USA
https://www.asapnetwork.org/sites/default/files/gfgq/installation/7373%20Rev%20NC.pdf
