Description
| Year | Make | Model | Sub Model | Drive |
|---|---|---|---|---|
| 2020 | Honda | SXS1000M3 Pioneer 1000 Deluxe | Base | U/K |
| 2023 | Honda | SXS10M6 Pioneer 1000-6 Deluxe Crew | Base | U/K |
| 2016 | Honda | SXS1000M5 Pioneer 1000-5 | Base | U/K |
| 2016 | Honda | SXS1000M3 Pioneer 1000 | Base | U/K |
| 2016 | Honda | SXS1000M5 Pioneer 1000-5 Deluxe | Base | U/K |
| 2017 | Honda | SXS1000M5 Pioneer 1000-5 Limited Edition | Base | U/K |
| 2017 | Honda | SXS1000M3 Pioneer 1000 Limited Edition | Base | U/K |

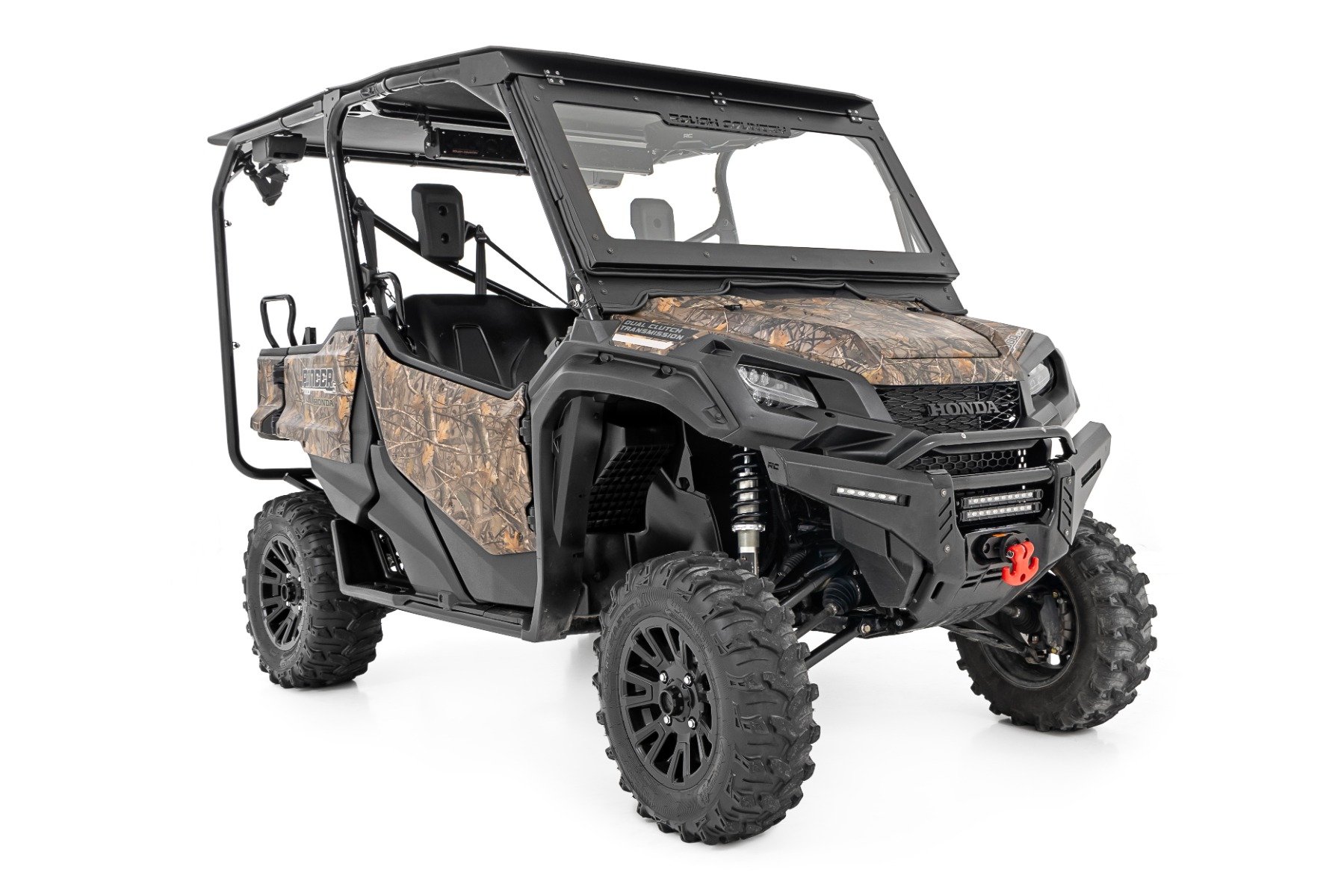

Maximum Durability and Visibility. Say hello to a whole new view with Rough Country's Auto-Tilt Glass Windshield for the Honda Pioneer 1000/1000-5. With its DOT-approved glass and sturdy construction, this windshield is less likely to crack or break, even when driving through rough terrain. The Auto-Tilt Glass Windshield for Honda Pioneer is the perfect accessory for your off-road vehicle, giving you unobstructed visibility. Our windshield is built to make your ride safer, so you can focus on the trail ahead.

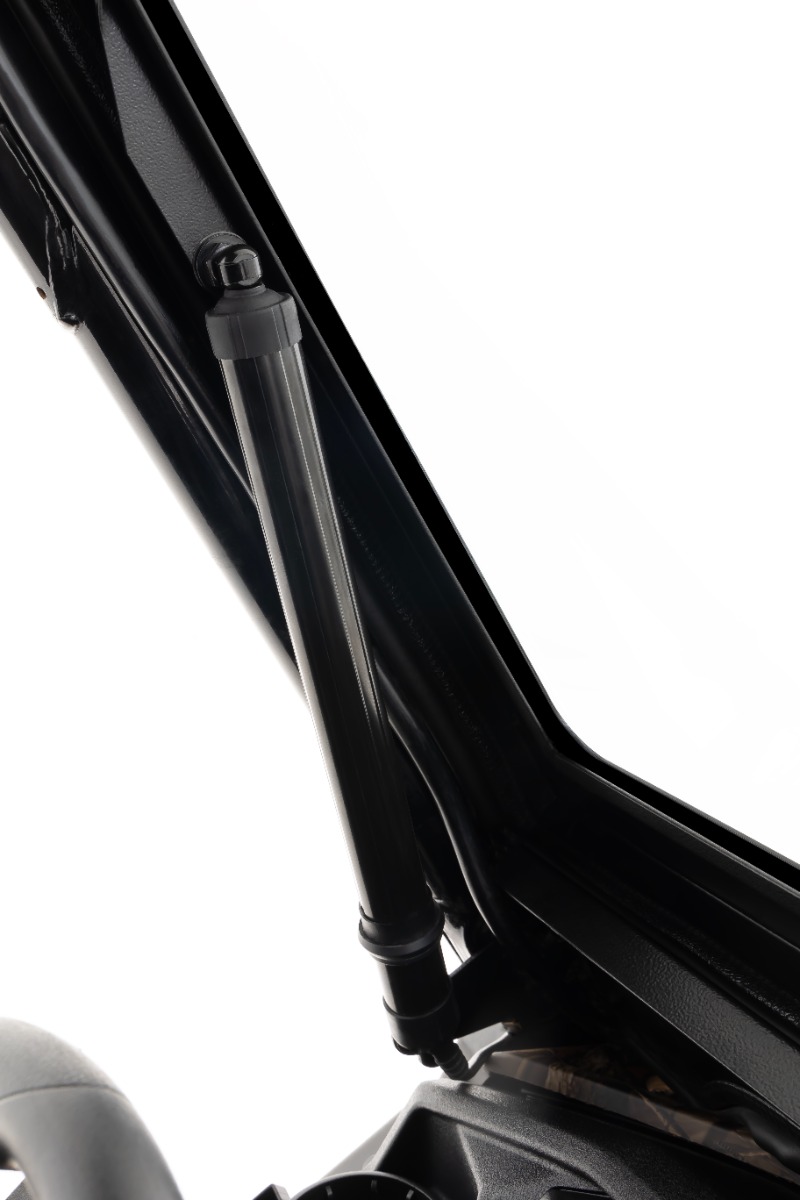

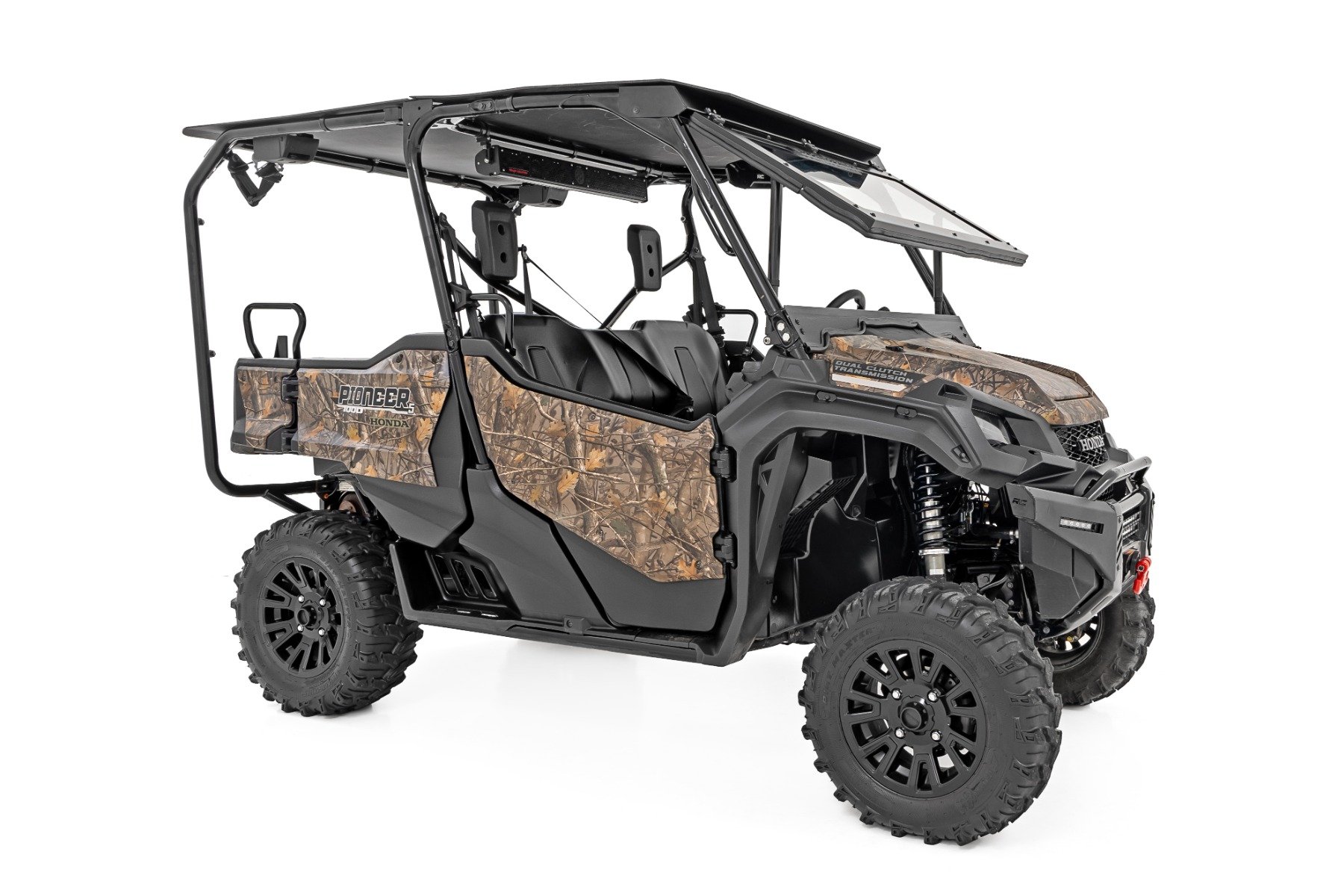

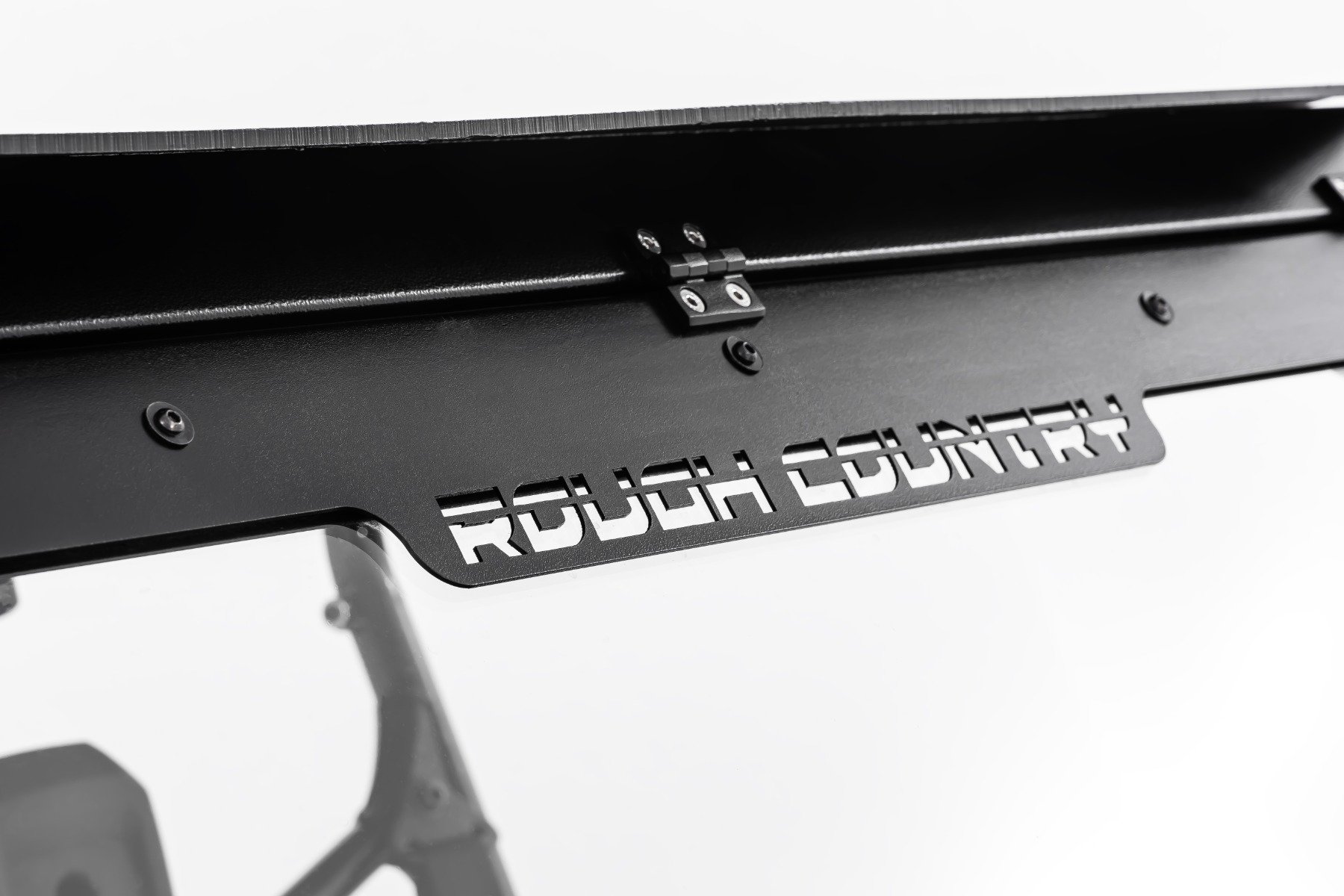

Heavy-Duty Reliability. The Auto-Tilt Windshield is installed in a heavy-duty metal frame with UV and scratch-resistant powder coating that can withstand all weather conditions. And with weather seal protection, the glass will stay in excellent condition for years to come. It features an easy-to-use rocker switch, so you can open the windshield slightly for minimum airflow or fully open it for maximum airflow. The push-button control with dual linear actuators is so easy to use that you can even adjust mid-ride. The glass is built for long-lasting reliability because the rugged design of your Pioneer deserves a windshield that is just as tough.
Installation. Our new Auto-Tilt Glass Windshield can be installed on Honda Pioneer models for a clear view and added protection. The windshield comes with the hardware needed for an easy install that includes some minor drilling.
Warranty. Rough Country's Auto-tilt Glass Windshield is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty, give yourself peace of mind when using Rough Country's products!
Frame Dimensions Width: 50.75" Height: 29.5" Glass Dimensions Width: 44.66" Height: 21.75" Metal Frame with UV and Scratch Resistant Powder Coating. DOT Approved Glass – Scratch & Impact Resistant Electrically actuated with position control – Open slightly for airflow or fully open for max airflow. Open and close with the push of a button. Edge seal creates a seal against the face of the vehicle blocking out most dust and water. Easy installation. Cylinder Specifications: Input Voltage: 12V Stroke: from 382±3mm to 586±3mm Force: 410N. Max support 45KGs Speed(no load): 10mm/s IP Rating: IP65 Working Temp: -5-50℃ Current(full load): 5A
Fits with most factory roofs but in some cases requires the roof to be trimmed ┬╝ to 3/8ΓÇ¥ along the front edge to clear windshield movement.
2017-2019:4WD:Honda:SXS1000M3 Pioneer 1000 Limited Edition;2017-2021:4WD:Honda:SXS1000M5 Pioneer 1000-5 Limited Edition;2016-2023:4WD:Honda:SXS1000M5 Pioneer 1000-5;2020-2023:4WD:Honda:SXS1000M3 Pioneer 1000 Deluxe;2016-2023:4WD:Honda:SXS1000M3 Pioneer 1000;2016-2023:4WD:Honda:SXS1000M5 Pioneer 1000-5 Deluxe
