Description

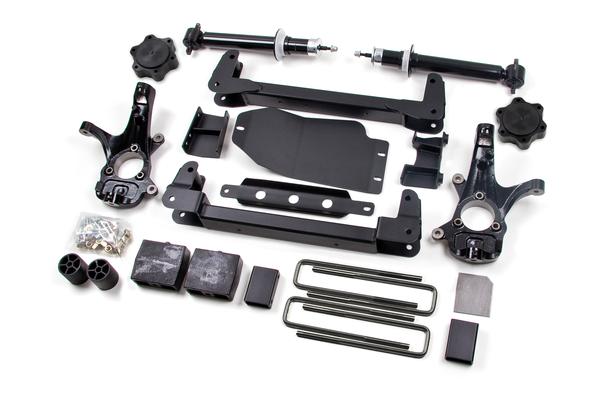

Upgraded Rear Fox Adventure Series Shocks
OVERVIEW
Front Lift Height | 6.5" |
Rear Lift Height | 5" |
Front Lift Method | Knuckle & Strut Spacer |
Rear Lift Method | Add-A-Leaf & Cast Block |
Lift Type | Lift Kit |
Wheel Size | 17 x 9 |
Back Spacing | 5" |
Max Tire Size | 35 x 12.5 |
Wheel Size 2 | 18 x 9 |
Back Spacing 2 | 5" |
Max Tire Size 2 | 35 x 12.5 |
Wheel Size 3 | 20 x 9 |
Back Spacing 3 | 5.75" |
Max Tire Size 3 | 35 x 12.5 |
Is Adjustable | No |
Finish | Powdercoat |
Metal Cutting Required | No |
Accommodates Factory Wheels | No |
Welding Required | No |
- All Necessary Mounting / Installation Hardware
- Crossmembers
- CV Axle Spacers
- Differential Drop Brackets
- Rear Lift Blocks
- Skid Plate
- Steering Knuckles
- U-Bolts
- Zone Nitro Series Struts
FEATURES
- Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
- Heavy-duty differential skid slate improves offroad protection.
- High pressure, extended length, replacement front struts improve performance on and offroad.
- High-strength, 1/4" steel construction crossmembers correct lower control arm geometry.
- High-strength, CNC machined, replacement Steering_Knuckles improve strength while correcting steering angles.
- Multi-point differential relocation brackets secure front differential for improved CV operating angles.
- Proudly made in the USA.
- Rear lift block and longer u-bolts for easy installation and level stance.
- Weld-in frame support plate for ad
